Metal Injection Moulding: Aerospace Engineering Meets Body Art

Every piece of body jewelry that is cast rather than machined contains a compromise. Investment casting — the industry standard for complex shapes — introduces microporosity: tiny voids left where the molten metal could not fill the mould completely, or where gas evolved from the metal as it cooled. In jewellery worn on a finger, microporosity is an aesthetic concern. In a 14-gauge threadless labret post with a 1.2 mm diameter thread, it is a structural failure waiting to happen. Threads snap. Thin sections crack under the bending loads of daily wear. Electropolishing can improve the surface but cannot close a void inside the metal.

Metal Injection Moulding was developed by the aerospace and medical device industries to solve exactly this problem: how do you produce geometrically complex metal components at volume, with material properties approaching wrought metal rather than casting? MIM combines the geometric freedom of plastic injection moulding with the material science of powder metallurgy. The result is a component that can have threads down to 0.8 mm, walls thinner than 0.5 mm, and internal density above 99.2% of theoretical — numbers that investment casting cannot approach. In 2014, Patrick Poli and Frédéric Poli brought this technology to body jewelry manufacturing for the first time.

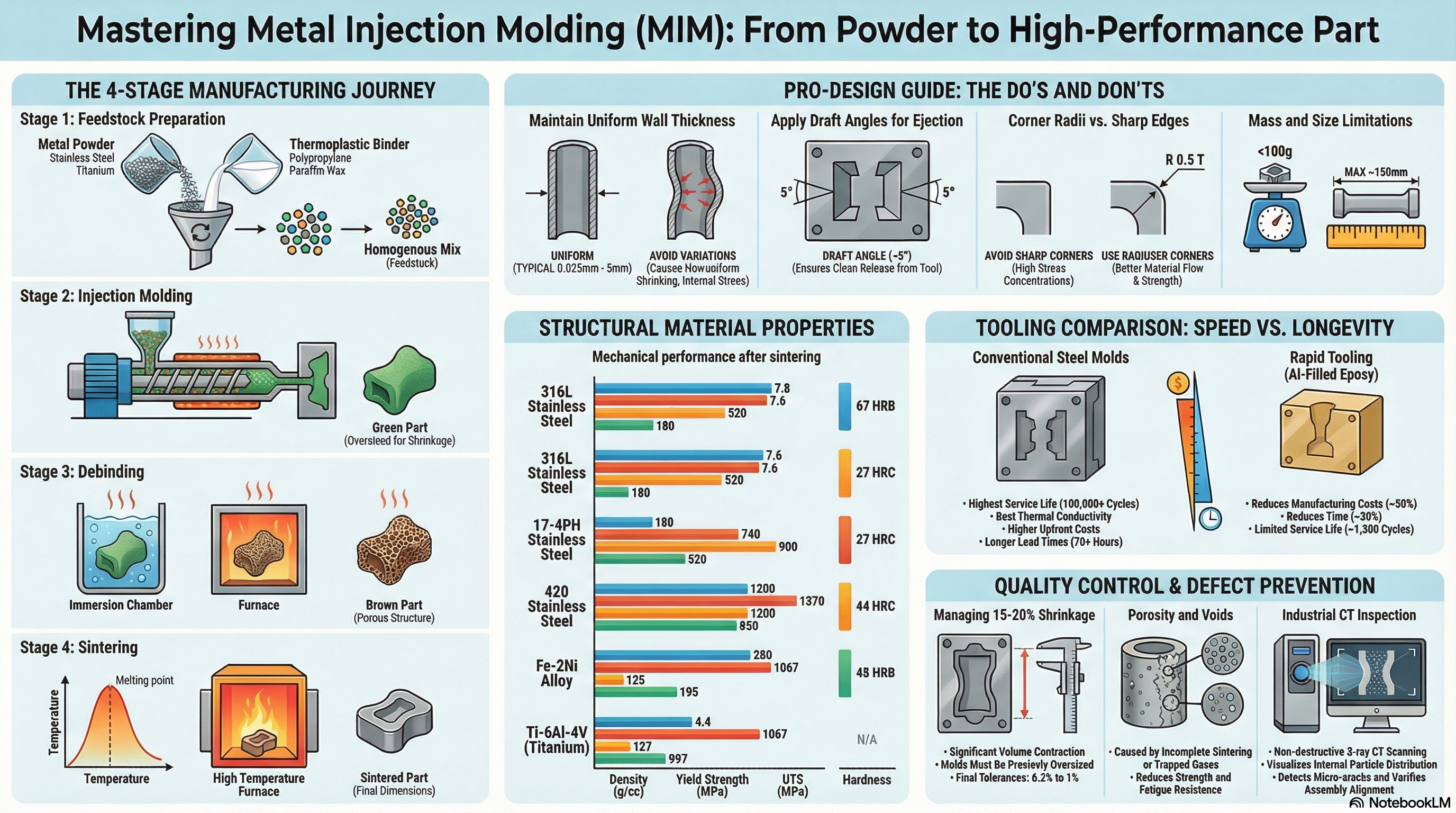

The MIM Process: Eight Steps from Powder to Jewelry

Metal Injection Moulding is a multi-stage process that requires coordination between the injection facility, the debinding facility, and the sintering furnace. The 2014 Sanford-Poli trials proved that existing body jewelry manufacturers can access all stages of this process without building a vertically integrated MIM facility.

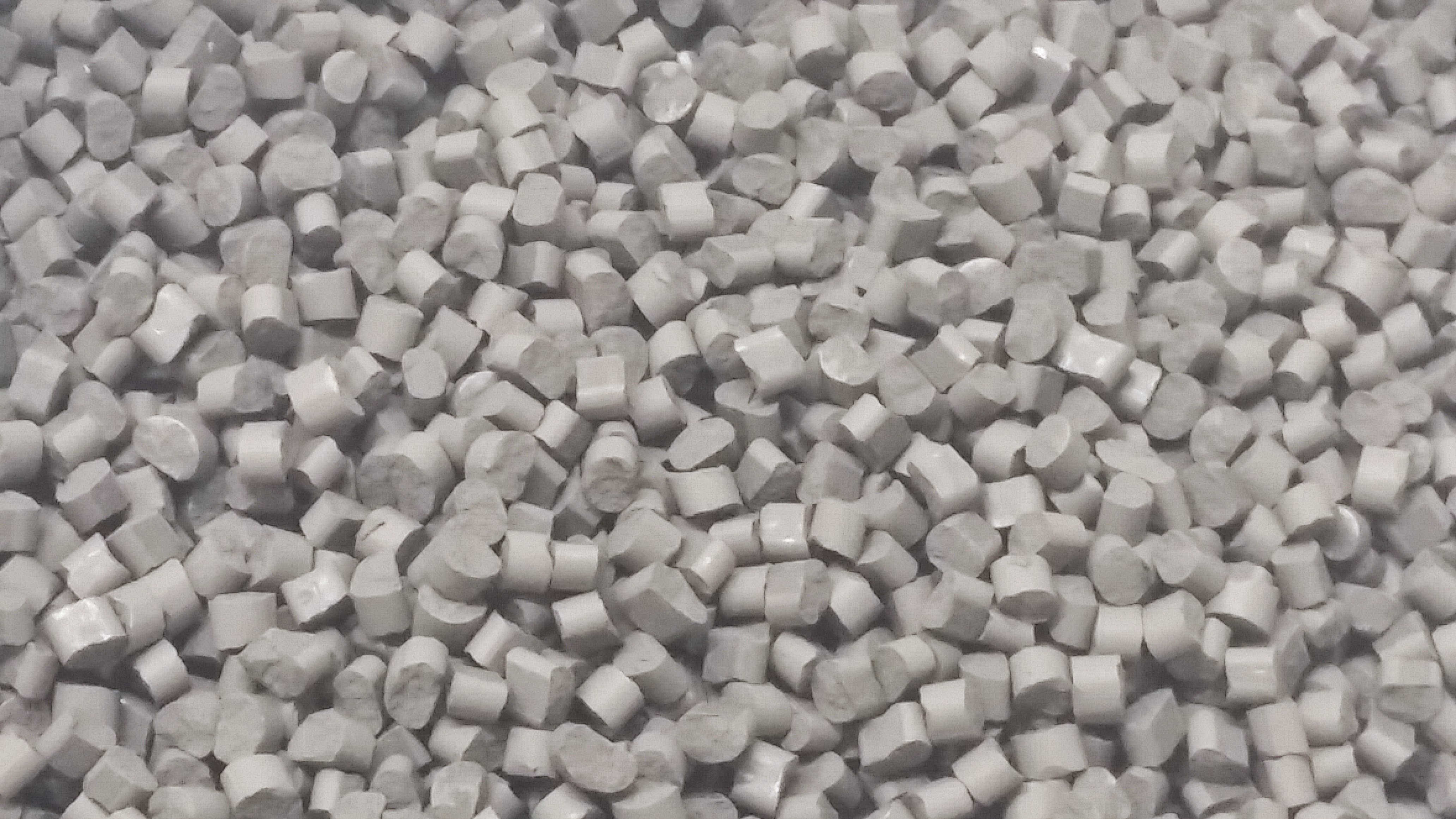

• »Step 1 — Feedstock preparation: Fine metal powder (316L stainless steel, particle size 5–20 μm) is mixed with a thermoplastic binder system (typically paraffin wax + polyethylene + surfactant) at 55–65% metal volume fraction. The resulting compound pellets have the flow characteristics of a thermoplastic and the metal content of a casting.
• »Step 2 — Injection moulding: The feedstock is heated to 150–180°C and injected into a precision steel mould under 40–150 MPa injection pressure. The mould geometry defines the final part shape. Shrinkage allowance (typically 15–20%) must be built into the mould dimensions. The injected "green part" contains the full geometric complexity of the final piece but is mechanically fragile.
• »Step 3 — Solvent debinding (primary): The green parts are immersed in a solvent bath (typically heptane or acetone at 40–60°C) that selectively dissolves the paraffin wax binder component. This creates an interconnected pore network through which the remaining binder can be removed in the next stage. The "brown part" after solvent debinding is extremely fragile — individual labret posts and belly bars in this state will snap under finger pressure.
• »Step 4 — Thermal debinding (secondary): The brown parts are heated in a controlled atmosphere furnace (< 600°C) to pyrolyse the remaining polymeric binder. The pore network from solvent debinding allows binder decomposition products to escape without building internal pressure that would fracture the part.

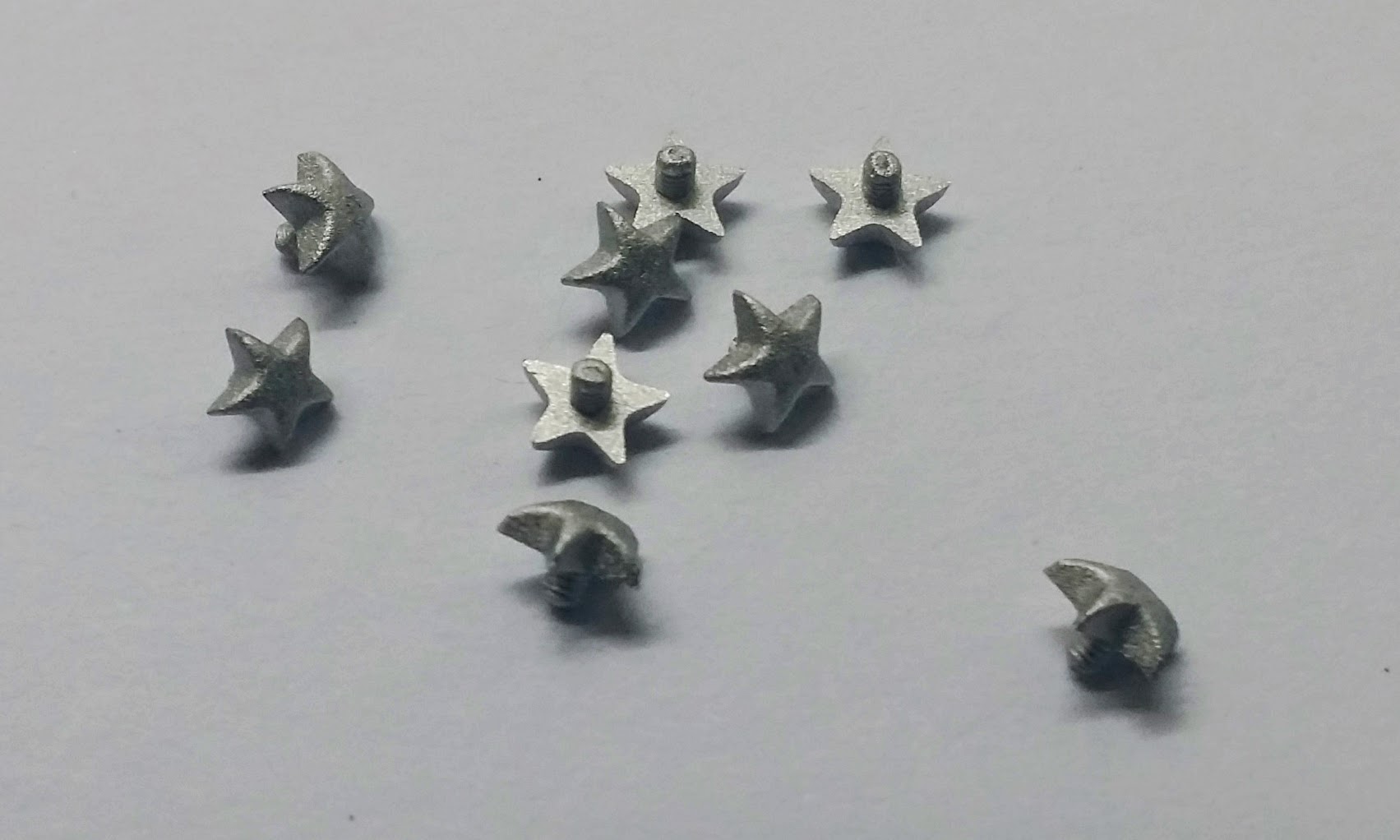

• »Step 5 — Sintering: The debound parts are placed in a sintering furnace at 1,300–1,380°C in a reducing atmosphere (hydrogen or dissociated ammonia for 316L stainless steel). At sintering temperature, the metal powder particles bond by solid-state diffusion — the material transitions from a porous powder compact to a dense polycrystalline metal. The part shrinks uniformly by ~15–20% as porosity closes.
• »Step 6 — Hot Isostatic Pressing (HIP): For aerospace-grade applications, sintered parts are subjected to HIP: simultaneous application of high temperature (900–1,100°C) and high isostatic pressure (100–200 MPa) via a pressurised argon atmosphere. As NASA Technical Handbook NASA-HDBK-5026 documents, HIP not only closes remaining microporosity and micro-cracks — it fuses them together at the atomic level. The resulting material has mechanical properties equivalent to wrought metal.
• »Step 7 — Surface finishing: As-sintered parts have Ra ~0.8 μm — adequate for many industrial applications but insufficient for body jewelry. Parts are electropolished to Ra < 0.1 μm, producing the mirror-bright, low-roughness surface required for implant-grade contact. Electropolishing also removes the surface oxide layer from sintering, revealing the clean chromium-rich passive layer of the 316L alloy.
• »Step 8 — Quality verification: Dimensional inspection (thread gauge, diameter, length). Material testing (density by Archimedes method; tensile test samples from batch). Surface roughness measurement. Biocompatibility certification per ISO 10993 framework. The 2014 trials used US-based sintering facilities managed by Dr. Robert Sanford for steps 5–6, demonstrating the outsourced model.

Why MIM Eliminates Fatigue Failure at Microscale

The structural failure mode that MIM addresses is fatigue fracture — the progressive crack propagation that occurs when a material is subjected to repeated cyclic stress below its ultimate tensile strength. In body jewelry, cyclic stress occurs with every movement of the pierced anatomy. A tongue bar flexes thousands of times per day. A navel bar bends with every step. A threadless labret post transmits vibration from speech. Cast components with internal microporosity contain stress concentrators — points where cracks initiate at far lower stress levels than a void-free material would require.

• »Microporosity as crack initiator: Internal voids in cast metal are stress concentrators under cyclic loading. The stress intensity factor at the edge of a spherical void is approximately twice the nominal applied stress. A small flaw under two times amplified stress, cycled thousands of times per day, initiates a fatigue crack that propagates progressively until the cross-section can no longer carry load and fractures.
• »Thread root geometry: Thread roots are inherently stress-concentrated geometries — the V-shaped valley of a thread concentrates stress by a factor of 3–5× the nominal tensile stress in the threaded section. In a cast 316L labret with a 1.2 mm thread, the combination of cast microporosity at the thread root and the geometric stress concentration creates a fatigue failure mechanism that explains the epidemic of snapped internals in cast body jewelry.
• »MIM solution: At > 99.2% theoretical density, MIM parts have no internal voids to initiate cracks. The HIP treatment further eliminates any residual microporosity and improves grain boundary bonding. Thread roots in a HIP'd MIM part contain no voids — only sound metal with the cyclic fatigue resistance of wrought 316L stainless steel.
• »NASA validation: The Sanford-Poli trials referenced NASA-HDBK-5026 (Fracture Control Requirements for Payloads Using the Space Shuttle) as the technical validation framework for HIP. This handbook quantifies how HIP eliminates fatigue-initiating flaws in aerospace structural components — the same physics apply to micro-scale body jewelry threads.
• »Comparison to CNC machining: CNC-machined implant-grade titanium (ASTM F136) is the gold standard for high-value body jewelry and has no porosity. MIM 316L HIP'd approaches CNC-machined 316L in mechanical properties at a fraction of the per-part manufacturing cost for complex geometries — making aerospace-grade structural integrity commercially viable at production scale.

The 2014 Sanford-Poli Trials: What Was Actually Achieved

The 2014 Thailand trials were not a proof-of-concept for MIM technology in general — MIM has been used in aerospace and medical devices since the 1970s. They were a proof-of-concept for the specific application of micro-MIM to body jewelry geometry: thin walls, small thread diameters, and the surface finish requirements of implant-grade materials.

• »The problem being solved: Traditional investment casting of 316L stainless steel body jewelry using acetal-based (polyoxymethylene) binder feedstocks was fundamentally limited in wall thickness and thread diameter. Acetal feedstocks have poor flow behaviour in thin-wall sections and do not produce the inter-particle bonding required for sub-millimetre threads. Micro-fractures in thin sections and thread failures were endemic in the industry.
• »The breakthrough: The Sanford-Poli trials used a purpose-formulated MIM feedstock (not acetal-based) compatible with the injection equipment available at the Poli International Thailand facility. By outsourcing debinding and sintering to Dr. Robert Sanford's US facility, the trials achieved successful injection of components with: 0.8 mm threads (industry minimum was previously ~1.5 mm for cast components); wall thicknesses below 0.5 mm; geometries previously achievable only by CNC machining.
• »The commercial model: A complete in-house MIM facility — injection moulding, debinding, sintering, HIP — represents a capital investment often exceeding $1M USD. The Sanford-Poli trials demonstrated a practical alternative: use the existing injection machines at the manufacturing facility for green part production, and outsource debinding and sintering to a specialist facility. This hybrid model reduces capital requirements by approximately 80% while accessing the full metallurgical benefits of the MIM process.
• »What was NOT claimed: The 2014 trials established feasibility and demonstrated first-sample production quality. Full production-scale validation — including long-run process stability, consistent post-sintering dimensions across large batches, and full ISO 10993 biocompatibility certification of the specific feedstock-sinter combination — represents the next stage of development. This is the honest engineering position: the proof-of-concept is complete; production-scale implementation requires further investment.
• »Industry significance: To the knowledge of the participants, the 2014 trials were the first successful micro-MIM application to body jewelry geometry anywhere in the world. The body jewelry industry has since begun to explore MIM more broadly, but commercially available MIM body jewelry at sub-1 mm thread diameters remains rare as of 2026.

Evaluating MIM Body Jewelry Quality

How to assess whether body jewelry marketed as MIM actually meets the manufacturing quality implied by that claim.

1. 1Step 1 — Request the material certificate: MIM 316L stainless steel produced to body jewelry standard should carry a material certificate confirming: alloy composition within ASTM F138 limits, density > 99.0% theoretical, surface roughness Ra < 0.1 μm post-electropolishing. Absence of these certifications means the MIM claim is unverifiable.
2. 2Step 2 — Ask whether HIP was performed: MIM without HIP produces material at ~96–99% density with residual micro-porosity. MIM with HIP produces material at > 99.2% density. For implant-contact use, HIP is the standard. A supplier who does not know whether HIP was applied has not purchased to this specification.
3. 3Step 3 — Dimensional verification of claimed geometry: Thread diameter (measured with calibrated thread gauge), internal bar length (measured with digital calipers), wall thickness at thin sections. MIM should reproduce dimensions within ±0.3% after sintering shrinkage compensation — consistency across multiple pieces from the same batch is the quality indicator.
4. 4Step 4 — Surface roughness check: Under a 10× loupe, the surface of correctly electropolished MIM 316L should appear mirror-bright with no visible porosity, pitting, or surface texture. Visible surface pores indicate either insufficient sintering density or inadequate post-processing.
5. 5Step 5 — Thread engagement test: MIM-produced threads at 0.8–1.2 mm diameter should engage smoothly with matching internal or external thread components. Rough engagement, binding, or visible burrs at thread roots indicate either dimensional error or insufficient debinding — binder residue in thread geometry is a known MIM defect mode.
6. 6Step 6 — Compare price point to process cost: Full-specification MIM 316L with HIP, electropolishing, and dimensional certification costs significantly more per piece than standard cast jewelry. If MIM jewelry is priced at the same level as standard cast pieces, the cost structure does not support genuine full-process MIM production. Due diligence is warranted.

Critical Errors

Specification and procurement errors in MIM body jewelry sourcing and use.

• ✕Accepting "MIM" labelling without process verification: "MIM" as a marketing term has appeared on jewelry that may have been produced by conventional casting with cosmetic surface treatment. Without a verifiable material certificate, density measurement, and process documentation, the MIM claim is unsubstantiated.
• ✕Purchasing MIM jewelry without HIP specification: MIM without HIP is an intermediate product — higher density than casting but not yet at wrought-equivalent properties. For body jewelry with sub-1.5 mm threads subjected to daily cyclic loading, HIP is the specification that eliminates fatigue failure risk. MIM without HIP reduces but does not eliminate the problem.
• ✕Assuming all 316L is equivalent regardless of manufacturing process: Cast 316L, MIM 316L (no HIP), MIM 316L (with HIP), and wrought 316L all have the same chemical composition but fundamentally different mechanical properties due to their respective microstructures. Chemical composition certification is necessary but not sufficient for structural quality assessment.
• ✕Using MIM feedstock compatibility as a proxy for jewelry quality: The feedstock composition used in MIM affects both the sintering process and the final material properties. Non-standard feedstock formulations (including acetal-based systems not designed for micro-geometry) can produce components that meet dimensional requirements but have inferior density or sintering quality. Feedstock specification should be part of the material documentation.
• ✕Not distinguishing micro-MIM (body jewelry scale) from standard MIM: The challenges of MIM at sub-1 mm thread diameters are qualitatively different from standard industrial MIM at 5–10 mm dimensions. Suppliers with general MIM capability may not have successfully solved the specific geometric challenges of body jewelry scale. The 2014 trials specifically addressed this distinction.

Standards Governing MIM Body Jewelry

Key manufacturing and material standards applicable to MIM body jewelry production.
